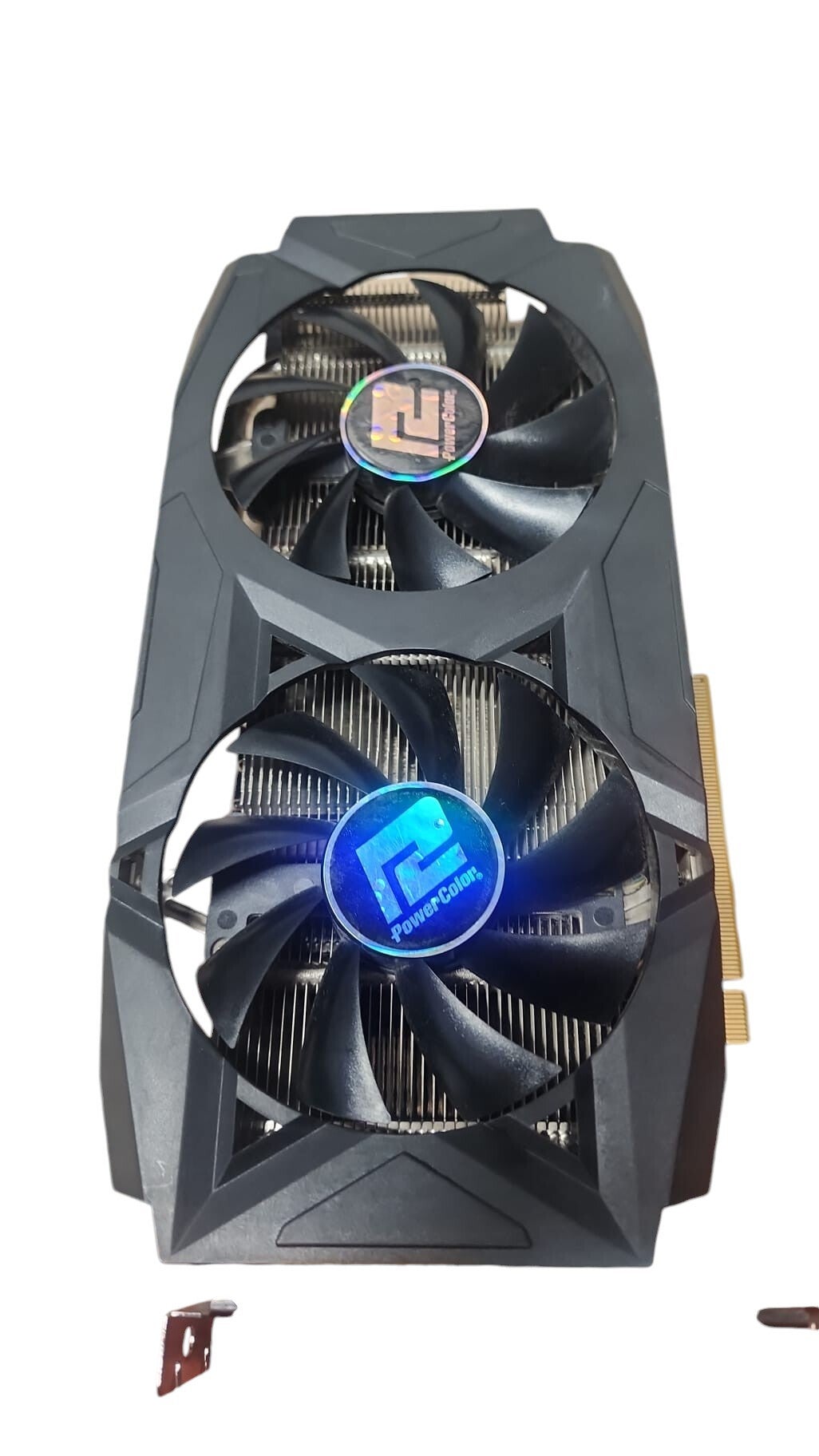

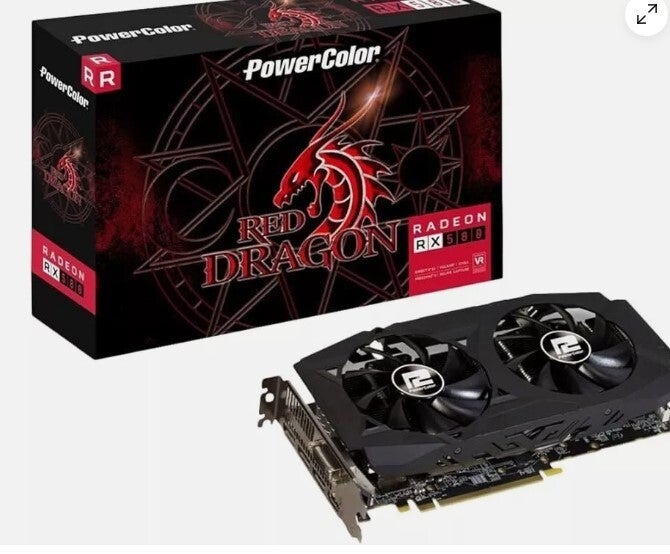

PowerColor Red Dragon Radeon™ RX 580 8GB GDDR5

Graphics Engine Radeon™ RX 580

Model Name AXRX 580 8GBD5-DHD

Series Red Dragon

Stream Processor 2304 Units

Video Memory 8GB GDDR5

Memory Speed 2000MHz x4 (8.0Gbps)

Memory Interface 256-bit

Engine Clock(STD/Silent) up to 1250MHz with boost

Bus Standard PCIE 3.0

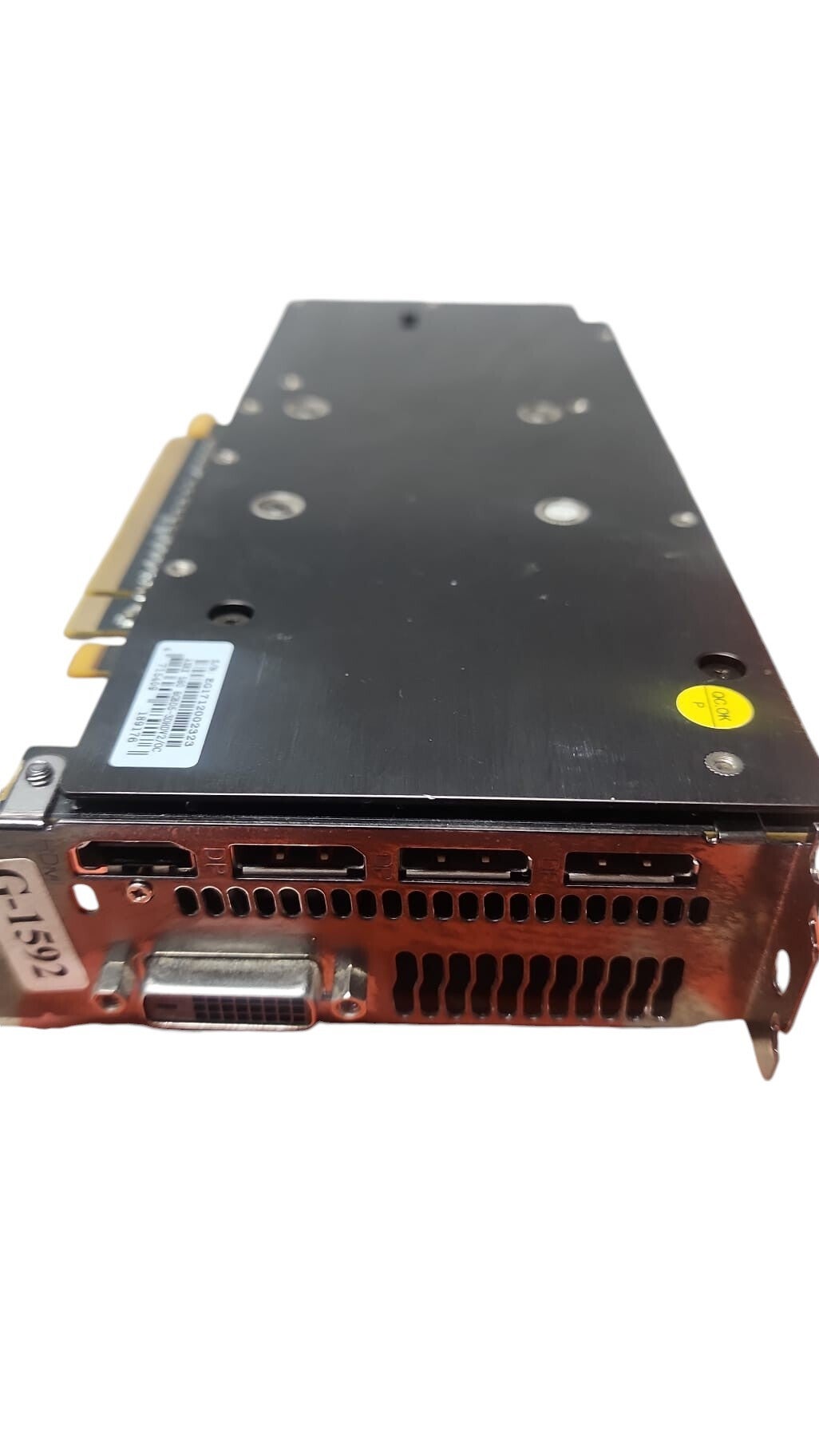

Standard Display Connectors DL DVI-D/ HDMI/ DisplayPort

Feature Support DirectX® Support

OpenGL

Support AMD Stream Technology

Support AMD Eyefinity Technology

Support Maximum Resolution

DVI 2560x1600

DisplayPort 4096x2160

HDMI 4096x2160

Power Specs + Board Dimensions

Board Dimensions 255mm*143mm*38mm

Slot 2

Minimum System Power requirement (W) 500W
