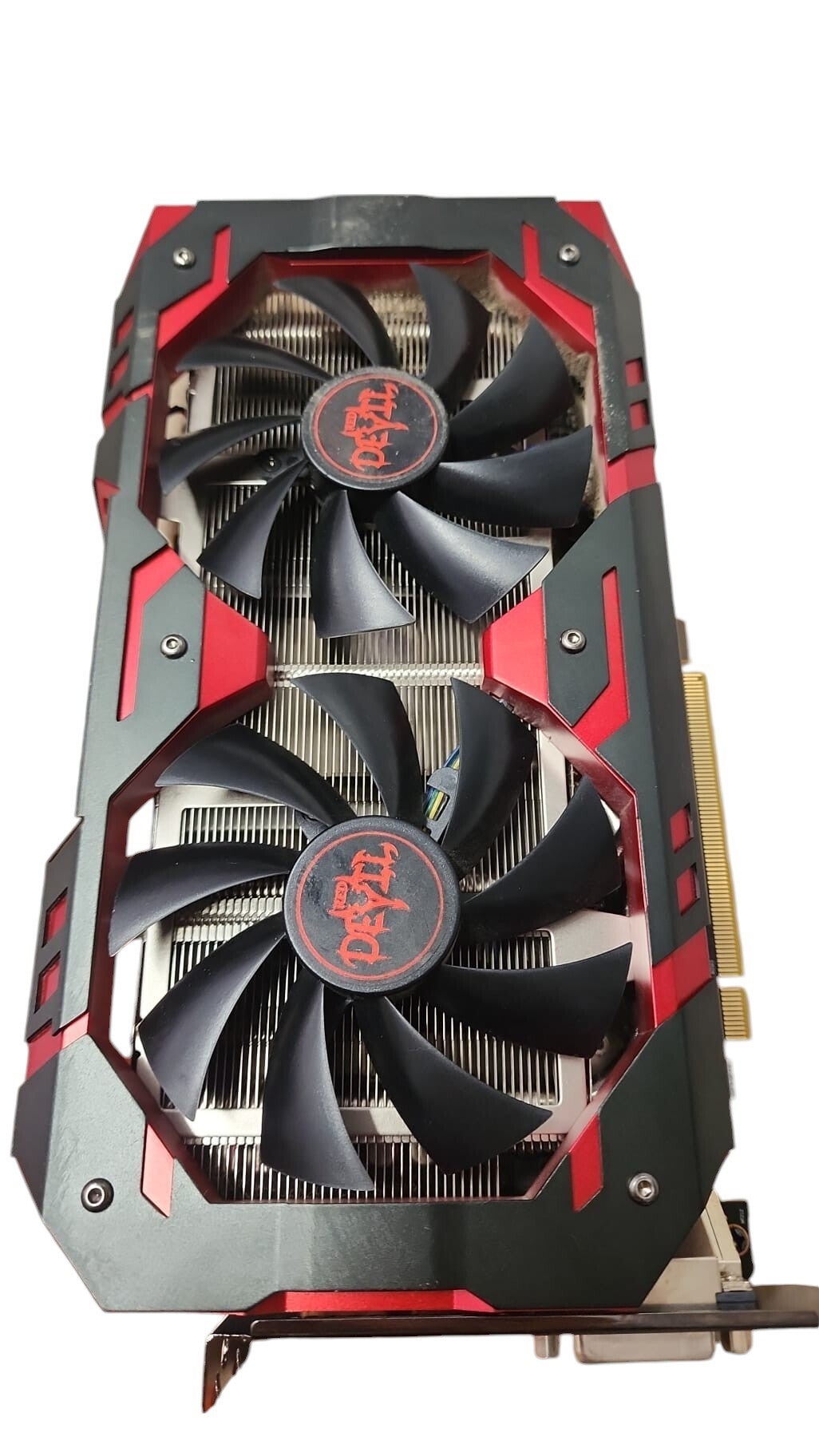

PowerColor Red Devil Radeon™ RX 580 8GB GDDR5 AXRX 580 8GBD5-3DHOC

SPECIFICATION

Graphics Engine Radeon™ RX 580

Model Name AXRX 580 8GBD5-3DH/OC

Series Red Devil

Stream Processor 2304 Units

Video Memory 8GB GDDR5

Memory Speed 2000MHz x4 (8.0Gbps)

Memory Interface 256-bit

Engine Clock(STD/Silent) up to 1380MHz with boost

Bus Standard PCIE 3.0

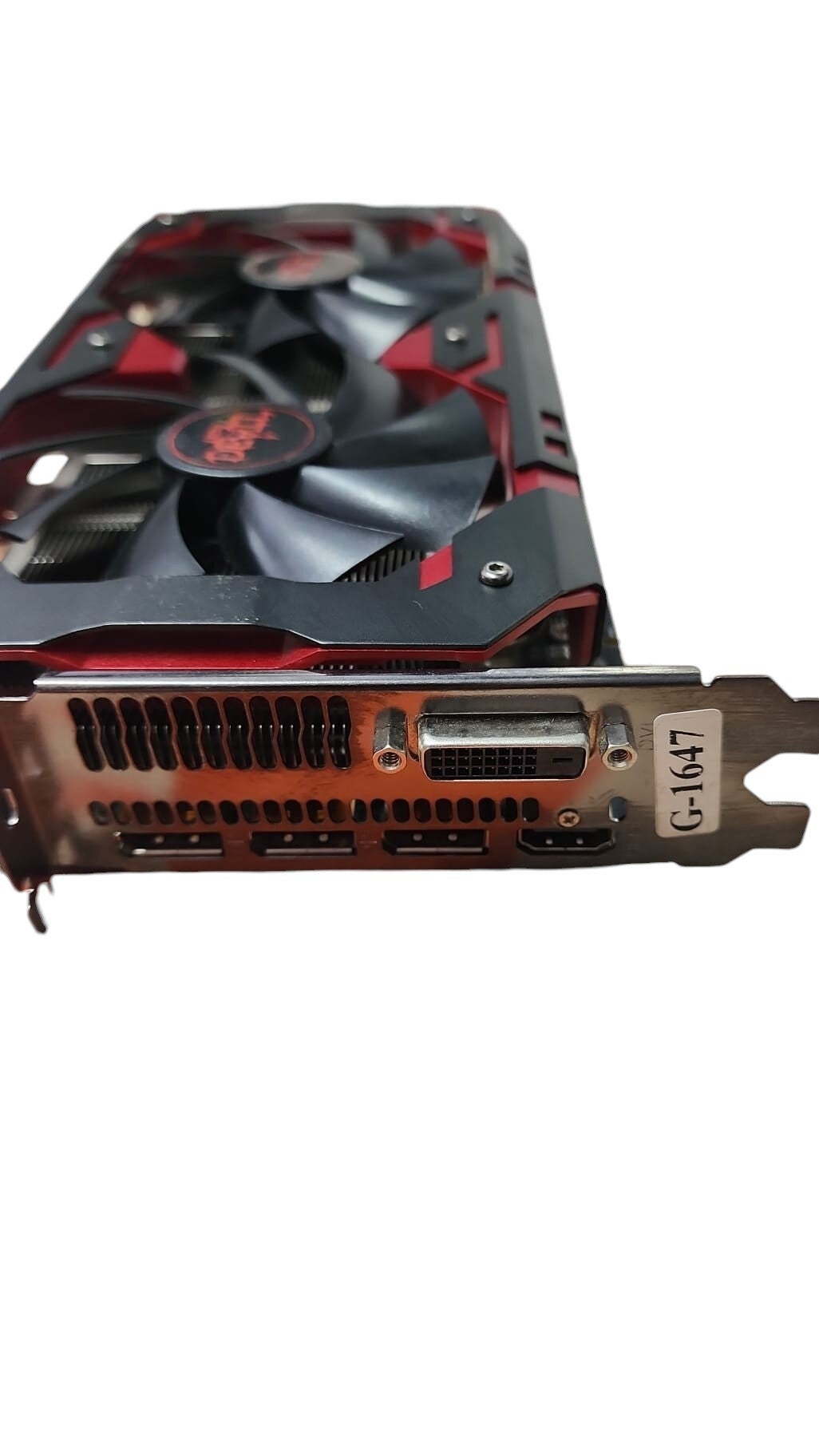

Standard Display Connectors

DL DVI-D/ HDMI/ DisplayPort x3

DirectX® Support 12

OpenGL Support

AMD Eyefinity Technology Support

AMD Stream Technology Support

Maximum Resolution DVI 2560x1600

DisplayPort 4096x2160

HDMI 4096x2160

Board Dimensions 255mm*157mm*46mm

Slot 2.5

Minimum System Power requirement (W) 550W
